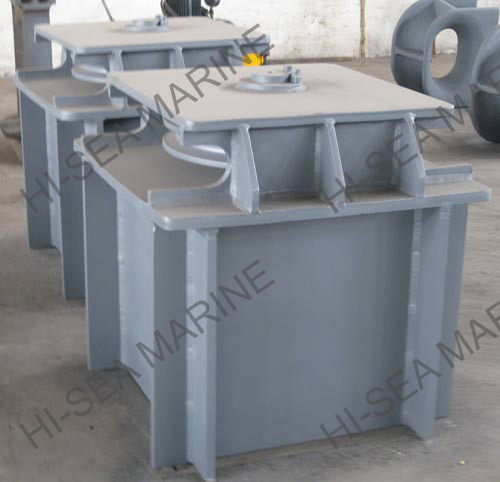

Horizontal Sheave
[Search Related Products]
Standard Features of Horizontal Sheave
1. Designed for breaking strength of wire with 90 degree warp on sheave
2. Grease lubricated bronze bush
3. Carbon steel pin and bearing
4. Sheaves made of high quality carbon steel and seamless pipe
5. No defects on surface
6. No block or looseness when sheave swivels
7. With welded base
8. Get certification of CCS, ABS etc.
Optional Features
1. Multiple sheaves
2. Bolt base
3. Load monitoring system
4. Produce according to customers¡¯ drawings

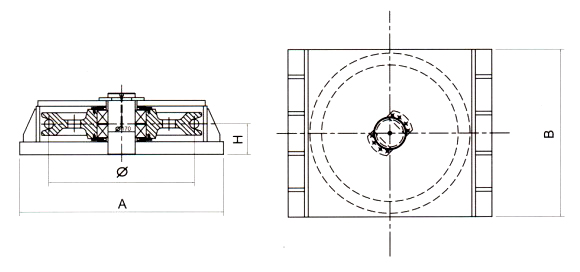

Drawing of Horizontal Sheave
MAX WIRE DIA (mm) |
A (mm) |
B (mm) |
H (mm) |
§¶ (mm) |
20 |
650 |
510 |
70 |
360 |
25 |
700 |
540 |
70 |
390 |
32 |
810 |
650 |
95 |
540 |
38 |
960 |
760 |
125 |
640 |
44 |
1080 |
850 |
160 |
710 |
52 |
1310 |
1060 |
175 |
880 |
60 |
1450 |
1130 |
185 |
920 |
68 |
1600 |
1250 |
195 |
956 |
76 |
1820 |
1350 |
220 |
1120 |
