CB 3062-2011 Five Roller Fairlead Type C

Fairlead with Horizontal Rollers

Fairlead with horizontal rollers, consisting of vertical and horizontal rollers, can guide mooring ropes from any direction. Horizontal roller fairlead, also called universal roller fairlead, is usually located in the deck end. Horizontal roller fairlead can greatly reduce the abrasion of mooring ropes for the rollers fixed around the fairlead.

CB/T 3062-2011 Horizontal Roller Fairlead

CB/T3062-2011 fairlead with horizontal rollers has 3 types: CB/T3062-2011 type A, B, C. The total number of rollers ranges from 3 to 5. Horizontal roller fairlead is strictly produced according to the standard CB/T3062-2011. The surface of the rollers do not have any defects which affect its performance and intensity such as cracks, blisters. All the fairleads get the certificate of quality. If you¡¯re interested in our fairleads, please feel free to contact us.

Specification of CB/T 3062-2011 Fairlead Type C :

Model Type: CB/T 3062-2011 Five Roller Fairlead Type C

Material: Cast Steel

Standard: CB/T 3062-2011

Roller No.: 5 Rollers

Steel Cable Diameters: 14mm~44mm

Nylon Rope Diameters: 36mm~100mm

Weight: 139kg~2877kg

Certificate: CCS, ABS, BV, LR, NK, RINA

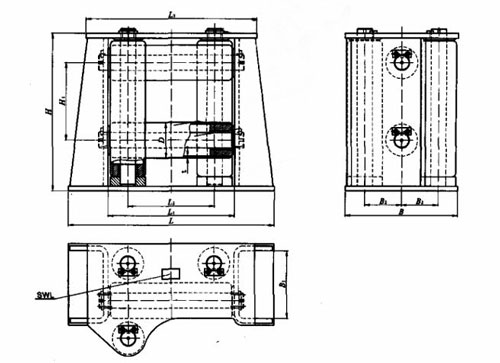

Drawing of CB/T 3062-2011 Five Roller Fairlead Type C:

CB 3062-2011 Five Roller Fairlead Type C

Unit:mm

Nominal Diameter

Steel Wire Diameter

Nylon Rope Diameter

SWL

KN

B

B1

B2

D

H

H1

L

L1

L2

L3

t

Weight

kg

100

14

36

54

324

194

108

102

508

250

644

416

300

544

10

139

120

16

40

70

384

232

128

124

552

270

728

456

320

608

12

209

140

18

45

89

415

250

138

140

606

310

776

480

330

646

14

284

150

20

70

110

475

288

158

152

670

330

880

540

370

730

16

410

160

22

80

133

507

308

168

168

710

360

940

580

400

780

18

541

180

26

85

186

571

345

190

194

770

380

1030

620

420

850

20

723

200

28

95

216

632

385

210

219

820

410

1136

686

460

936

22

931

230

32

100

282

723

446

240

245

910

450

1256

746

490

1026

25

1253

260

36

100

357

815

500

270

273

1000

500

1430

850

560

1170

28

1852

320

44

100

533

997

620

330

325

1130

570

1690

990

640

1370

30

2877

CB 3062-2011 Five Roller Fairlead Type C

Fairlead with Five Horizontal Rollers
