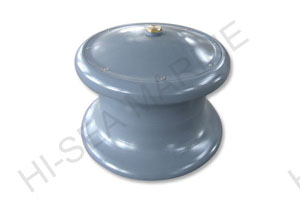

Jis F2014 Roller
[Search Related Products]
Features of JIS F2014 Roller
1. Rollers strictly produced according to JIS F2014-87;
2. Type: JIS F2014 single roller, open type or closed type
3. Two or three roller can be used in a group;
4. Nominal diameter 150mm to 400mm;
5. Material: cast steel(ZG230-450), copper
6. Paint: grey epoxy primer
7. Durable,long lifetime
8. Certificate: CCS,BV etc.
9. Provide both standard and customized fairlead rollers

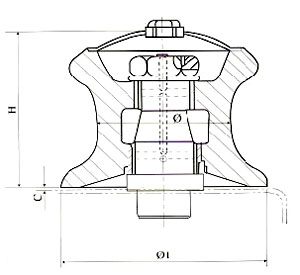

Drawing of JIS F 2014 Fairlead Roller
Roller Dia.(mm) |
¦µ |
¦µ1 |
H |
C |
Weight (Kg) |
SWL Tightwire Dia.(mm) |
150 |
150 |
240 |
195 |
3 |
32.1 |
17mm |
200 |
200 |
310 |
235 |
3 |
64.6 |
22.5mm |
250 |
250 |
380 |
282 |
4 |
108 |
24mm |
300 |
300 |
440 |
305 |
4 |
159 |
30mm |
350 |
350 |
500 |
330 |
4 |
235 |
37.5mm |
400 |
400 |
560 |
355 |
5 |
336 |
41mm |
