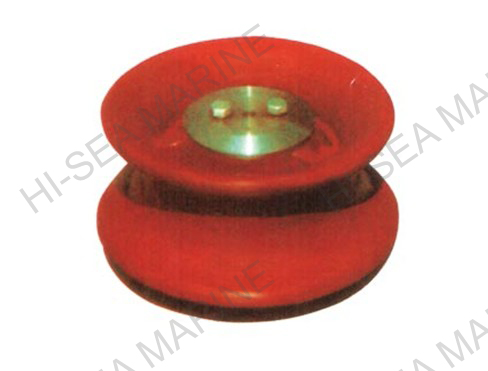

Fairlead Roller
[Search Related Products]
Features of Fairlead Roller
1. Used to guide mooring ropes on deck;
2. Cast steel/ cast iron roller;
3. Polished and lubricated surface helps reduce abrasion of ropes;
4. Nominal diameter 150mm to 500mm;
5. Painting colors determined by customers;
6. Rollers can be used together into a group;
7. Can be used with pedestal;
8. Produced according to specific drawings;
9. Certification of CCS, ABS, LR etc.;
Fairlead Roller Type A

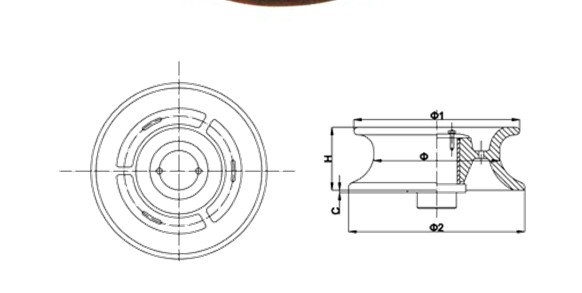

Drawing of Fairlead Roller (Type A)
Specification | Dimensions (mm) | ||||
งถ | งถ1 | งถ2 | H | C | |
150 | 150 | 216 | 240 | 137 | 5 |
200 | 200 | 280 | 310 | 157 | 5 |
250 | 250 | 350 | 380 | 177 | 6 |
300 | 300 | 400 | 440 | 197 | 7 |
350 | 350 | 460 | 500 | 217 | 7 |
400 | 400 | 520 | 560 | 237 | 7 |
450 | 450 | 590 | 630 | 257 | 7 |
500 | 500 | 660 | 700 | 277 | 7 |
