CB290-84 Chain Wheel For Hause Pipe
[Search Related Products]
Features of CB290-84 Chain Wheel
1. Standard CB290-1984 applicable to small and medium size ships;
2. Used to guide the direction of anchor chains;
3. Nominal Diameter of Anchor Chain 12.5mm to 68mm;
4. Made of casting steel;
5. Polished and lubricated roller;
6. Rust protection;
7. Anti-abrasion;
8. Pass quality test and get quality certificate;
9. Can be customized as customers require;

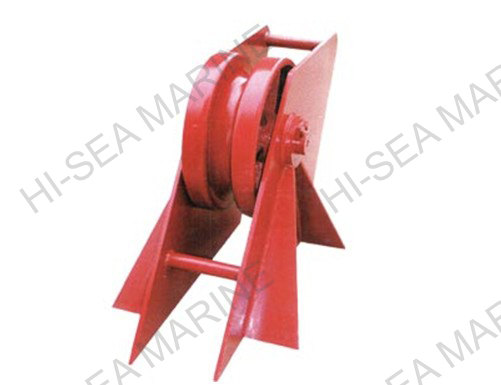

CB290-84 Chain Wheel for Hawse Pipe

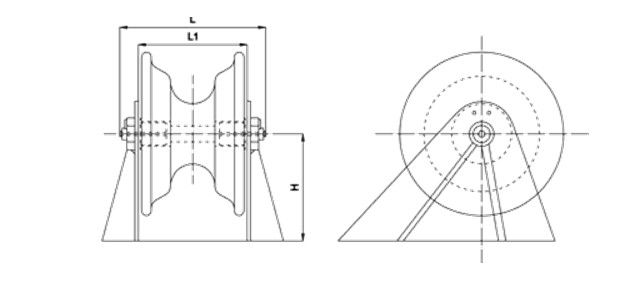

Drawing of CB290-84 Chain Wheel for Hawse Pipe
Weight (kg) | Diameter of Anchor Chain (mm) | Dimensions (mm) | ||
H | L | L1 | ||
8.8 | 12.5-14 | 112 | 176 | 102 |
18 | 16-17.5 | 138 | 214 | 130 |
26.7 | 19-20.5 | 154 | 234 | 146 |
39.4 | 22-24 | 176 | 254 | 168 |
58 | 26-28 | 198 | 286 | 192 |
85 | 30-32 | 226 | 320 | 214 |
113.5 | 34-36 | 248 | 350 | 240 |
157.6 | 38-40 | 274 | 388 | 266 |
204 | 42-44 | 296 | 424 | 294 |
257.7 | 46-48 | 324 | 454 | 316 |
310 | 50-52 | 346 | 480 | 338 |
393 | 54-56 | 372 | 514 | 362 |
457.9 | 58-60 | 394 | 542 | 378 |
581.6 | 62-64 | 422 | 574 | 402 |
663.7 | 66-68 | 444 | 604 | 424 |
