360 Degree Swivel Fairlead

Swivel Fairlead

Swivel fairlead, installed on the deck of ships, is one kind of fairlead device which is used for ship mooring. In the central body of the fairlead there is opening for mooring ropes or anchor chains. At the beginning and end of the fairlead,there are same size front panel and back panel. The shape of opening is approximately elliptical. The surface of opening is smooth to avoid the abrasion of mooring ropes or anchor chains. In order to increase the stiffness and strength, fairlead set respectively horizontal, vertical, diagonal ribs. With the compact structure and reasonal opening, swivel fairlead is applicable to not only ordinary ship towing or mooring, but also to ships sailing in the canal waterway.

Specification:

Model Type:360 Degree Swivel Fairlead

Max. Rope Diameter: 20mm~76mm

Breaking Strength:32~200MT

Rotation Angle: Sheave90¡ãwarp, Swivel Head¡À90¡ã

Material: Cast Steel

Certificate:CCS,ABS,BV,LR,NK,RINA

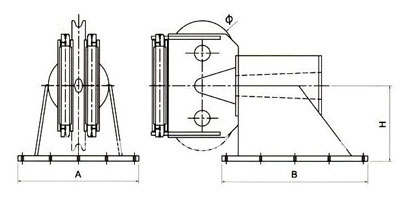

Drawing of 360 Degree Swivel Fairlead:

360 Degree Swivel Fairlead

Unit:mm

Type

Max Wire Dia

A

B

H

¦µ

SLPM20

20

400

425

350

250

SLPM25

25

400

425

360

250

SLPM32

32

600

600

376

320

SLPM38

38

760

760

489

400

SLPM44

44

880

880

580

500

SLPM52

52

1120

1250

700

600

SLPM60

60

1120

1350

720

620

SLPM68

68

1210

1450

780

680

SLPM76

76

1250

1500

870

780
