CB 3062-79 Nine Roller Fairlead Type E

Fairlead with Horizontal Rollers

Fairlead with horizontal rollers, consisting of vertical and horizontal rollers, can guide mooring ropes from any direction. Horizontal roller fairlead, also called universal roller fairlead, is usually located in the deck end. Horizontal roller fairlead can greatly reduce the abrasion of mooring ropes for the rollers fixed around the fairlead.

CB 3062-79 Horizontal Roller Fairlead

CB*3062-79 fairlead with horizontal rollers has 6 types: CB*3060-79 type A, BA, BB, C, D, E. The total number of rollers ranges from 3 to 9. Horizontal roller fairlead is strictly produced according to the standard CB*3062-79. The surface of the rollers do not have any defects which affect its performance and intensity such as cracks, blisters. All the fairleads get the certificate of quality. If you’re interested in our fairleads, please feel free to contact us.

Specification of CB*3062-79 Fairlead Type E:

Model Type: CB*3062-79 Nine Roller Fairlead Type E

Material: Cast Steel

Standard: CB*3062-79

Roller No.: 9 Rollers

Steel Cable Diameters: 19.5mm~68.0mm

Nylon Rope Diameters: 36mm~100mm

Weight: 302kg~6432kg

Certificate: CCS, ABS, BV, LR, NK, RINA

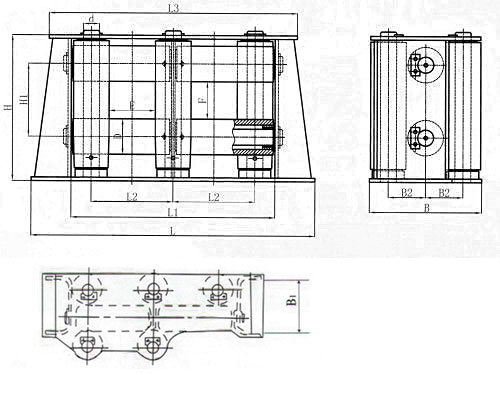

Drawing of CB 3062-79 Nine Roller Fairlead Type E:

CB 3062-79 Nine Roller Fairlead Type E

Unit:mm

Steel Rope Dia.	Nylon Rope Dia.	E	F	D	d	L	L1	L2	L3	B	B1	B2	H	H1	Weight(kg)
19.5	36	200	150	100	40-0.5	944	716	300	844	324	194	108	508	250	302
22.5	40	200	150	120	50-0.5	1048	776	320	928	384	232	128	552	270	464
26.0	45	200	180	130	55-0.5	1106	810	330	976	415	250	138	606	310	596
32.0	70	220	180	150	65-0.5	1250	910	370	1100	475	288	158	670	330	883
34.5	80	240	200	160	70-0.5	1340	980	400	1180	507	308	168	710	360	1048
37.5	85	240	200	180	80-0.5	1450	1040	420	1270	571	345	190	770	380	1229
43.0	95	260	210	200	90-0.5	1596	1146	460	1396	632	445	210	920	410	1911
52.0	100	260	220	230	100-0.5	1746	1236	490	1516	723	500	240	910	450	2675
60.5	_	300	240	260	120-0.5	1990	1410	560	1730	815	620	270	1000	500	3887
68.0	_	320	250	320	150-0.5	2330	1630	640	2010	997		330	1130	570	6432
