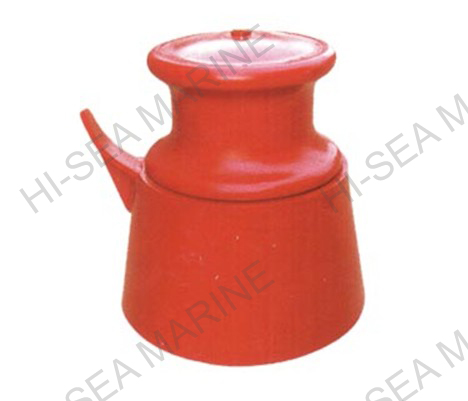

CB436-83 Single Roller Cleat Fairlead
[Search Related Products]
Features of CB*436-83 Single Roller Cleat Fairlead
1. Production standard CB*436-83;
2. Nominal roller diameters 150mm to 400mm;
3. Can be casted iron or steel;
4. Apply to Steel wire, hemp wire, synthetic carbon fiber rope;
5. Multiple painting colors: red,gray, black etc.
6. High breaking strength and long using life;
7. Get certificate of CCS, ABS etc.
8. Able to produce according to customer¡¯s drawing;
Cleat Fairlead with Single Roller

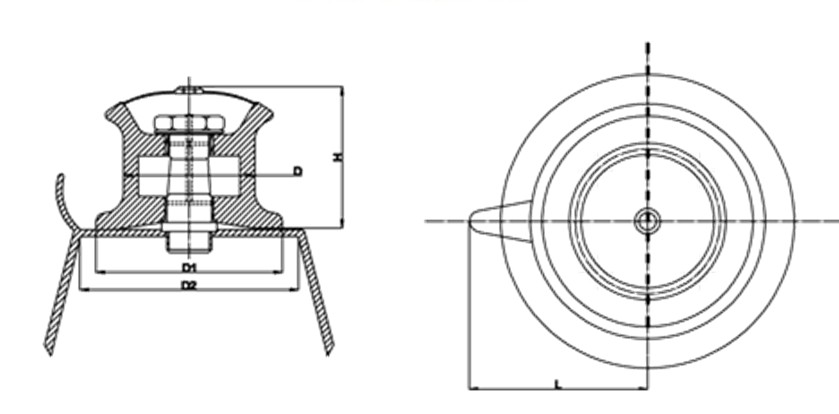

Drawing of CB*436-83 Single Roller Cleat Fairlead
D (mm) | Dimensions (mm) | Weight (kg) | ||||
D1 | D2 | L | H | Cast Iron | Cast Steel | |
150 | 240 | 270 | 245 | 211 | 32.1 | 33.8 |
200 | 310 | 340 | 285 | 251 | 64.6 | 38 |
250 | 380 | 410 | 323 | 298 | 108 | 114 |
300 | 440 | 470 | 355 | 321 | 159 | 168 |
350 | 500 | 530 | 390 | 346 | 235 | 248 |
400 | 560 | 590 | 420 | 371 | 336 | 355 |
