GB T290-95 Marine Chain Wheel

GB T290-95 Marine Chain Wheel

Marine chain wheel, installed between hawse pipe and chain stopper, is a kind of marine chain roller which is used to avoid the friction between anchor chain and hawse pipe. CB/T 290-95 chain wheel for hawse pipe is mainly made of casting steel and carbon fiber steel. Its surface is clean and smooth. There is no any defects such as airhole, crack which may affect chain wheel¡¯s strength. The roller is flexible to turn. It is anti-rust as well. Our marine chain wheels are approved by quality inspection center. If you¡¯re interested in our products, please feel free to contact us.

Specification:

Model Type:CB T290-95 Marine Chain Wheel

Usage: applicable to medium and small size ships

Material: Cast Steel

Standard:GB/T 290-1995

Nominal Diameter:14mm~68mm

Weight:12.7kg~832.3kg

Certificate: CCS,ABS,BV,NK,LR,RINA

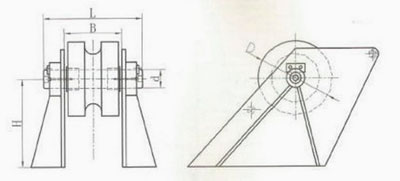

Drawing of CB T290-95 Marine Chain Wheel:

GB T290-95 Marine Chain Wheel

Unit:mm

Type

Dia. Of Anchor Chain

D

d

L

B

H

Weight(kg)

14

12.5~14

154

26

164

94

150

12.7

17.5

16~17.5

192

32

186

108

170

21.0

20.5

19~20.5

226

38

208

122

210

32.6

24

22~24

264

42

236

142

240

50.0

28

26~28

308

48

262

160

280

74.0

32

30~32

352

54

292

178

310

104.9

36

34~38

396

58

319

201

360

144.4

40

38~40

440

64

349

219

390

189.8

44

42~44

484

70

377

239

430

239.9

48

46~48

528

74

405

259

470

305.5

52

50~52

572

78

430

280

510

370.3

56

54~56

616

82

466

302

540

453.6

60

58~60

660

88

492

320

580

572.3

64

62~64

704

94

526

342

620

687.5

68

66~68

748

98

552

360

660

832.3
