CB 58-83 Guide Roller
CB*58-83 fairlead roller is applicable to guiding mooring rope¡¯s direction. Its roller diameter varies from 100mm to 450mm. The material of CB58-83 roller can be steel or iron. Steel wire, hemp wire and synthetic fiber wire are suitable for CB*58-83 standard fairlead roller. Among these three types of wire, the steel wire has the largest breaking load value.
CB*58-83 roller can be combined to be used in groups. JIS F 2014-1987 is composed of serveral CB*58-83 guide rollers with stand. We can provide various types of fairlead rollers. If you¡¯re interested in our guide rollers, please feel free to contact us.
Specification:
Model Type: CB*58-83 Guide Roller
Material: Cast Steel/Cast Iron
Roller Diameter: 100mm~450mm
Weight: 9.4kg~462.0kg
Standard:CB*58-83
Certificate: CCS,ABS,LR,BV,NK,RINA

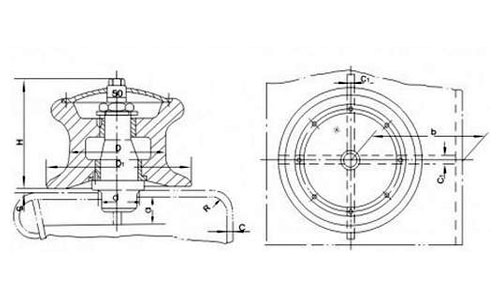

Drawing of CB*58-83 Guide Roller:
Unit:mm
Diameter of Roller D |
Max. Dimeter of Applicable Cable |
Base Size |
Dimensions |
Weight(kg) |
||||||||||||
Steel(GB1102) Stress Length 1520N/mm² |
Hemp Rope |
Synthetic Fiber Rope |
a |
b |
c |
c1 |
d |
R |
D1 |
H |
S |
Cast Iron(HT) |
Cast Steel(ZG) |
|||
6¡Á24 |
6¡Á30 |
6¡Á37 |
||||||||||||||
100 |
11 |
11 |
11 |
40 |
28 |
60 |
125 |
8 |
6 |
48 |
30 |
160 |
128 |
3 |
9.4 |
9.9 |
150 |
17 |
17.5 |
15 |
45 |
32 |
75 |
190 |
12 |
8 |
71 |
40 |
240 |
211 |
3 |
32.1 |
33.8 |
200 |
22.5 |
21.5 |
19.5 |
55 |
40 |
85 |
230 |
14 |
10 |
95 |
40 |
310 |
251 |
3 |
64.6 |
68.0 |
250 |
24 |
26 |
24 |
65 |
45 |
100 |
265 |
14 |
10 |
107 |
40 |
380 |
298 |
4 |
108 |
114.0 |
300 |
30 |
32.5 |
28 |
70 |
50 |
100 |
320 |
16 |
14 |
127 |
60 |
440 |
321 |
4 |
159 |
168.0 |
350 |
37.5 |
39 |
34.5 |
75 |
55 |
100 |
350 |
18 |
14 |
144 |
60 |
500 |
346 |
4 |
235 |
248.0 |
400 |
41 |
39 |
39 |
85 |
65 |
100 |
380 |
20 |
16 |
161 |
60 |
560 |
371 |
5 |
336 |
355.0 |
450 |
44.5 |
47.5 |
43 |
- |
80 |
100 |
410 |
20 |
16 |
180 |
60 |
620 |
394 |
5 |
413 |
462.0 |
