CB436-2000 Cleat Fairlead Type A

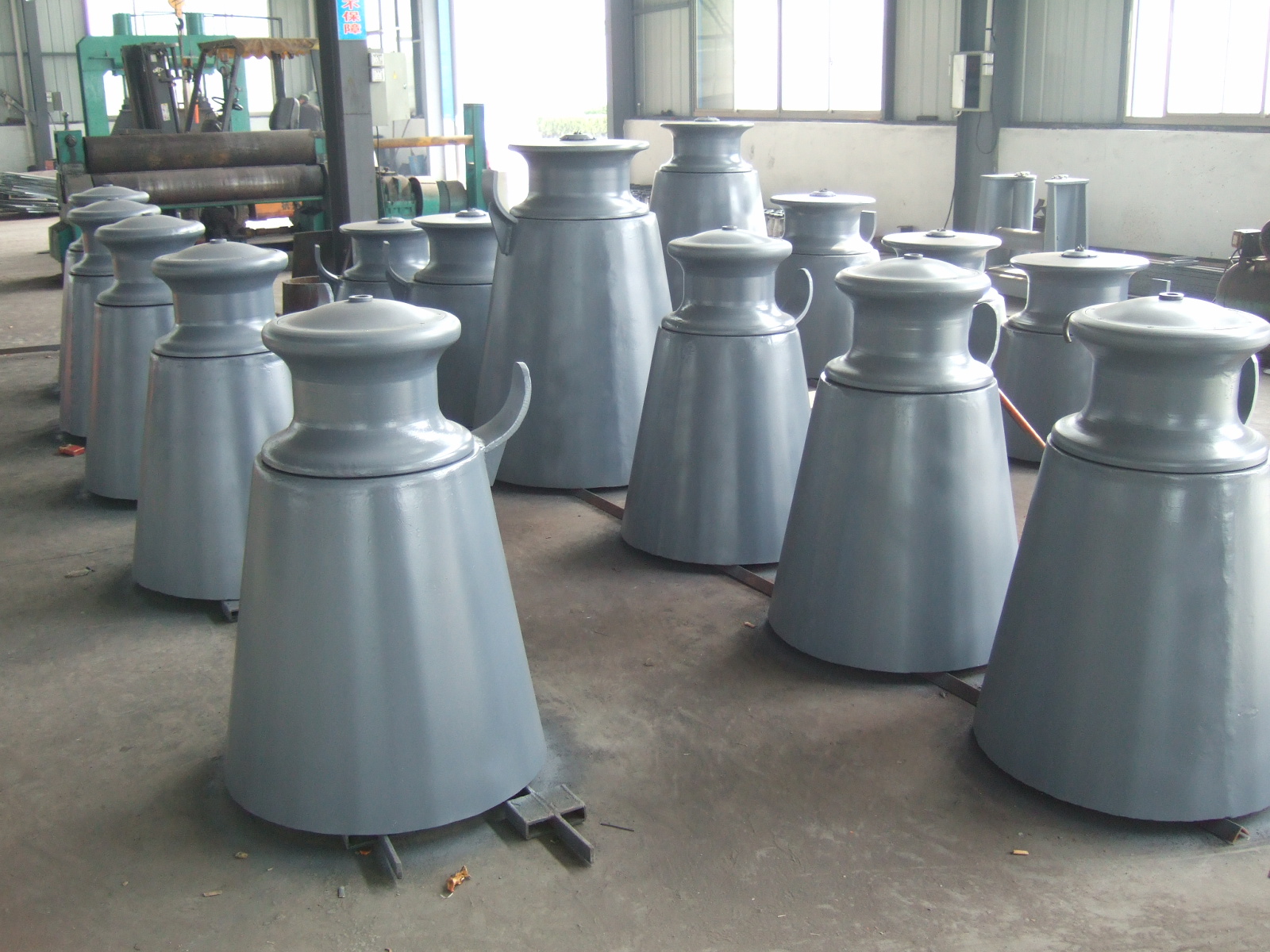

CB436-2000 Cleat Fairlead with Single Roller

CB*436-2000 cleat fairlead with single roller has two types: type A and type B. CB*436-2000 type A adopts the CB*58-83 fairlead roller. CB*436-2000 type B adopts GB/T10105-88 marine roller. CB*436-2000 fairlead is strictly produced in line with the quality standard. Its weld and surface is smooth and uniform. The fairlead roller is flexible to turn. The surface of roller is painted asphalt. All our fairleads get the certificate of quality. If you¡¯re interested in our fairlead, please feel free to contact us.

Specification:

Model Type: CB436-2000 Cleat Fairlead Type A

Material: Cast Iron/ Cast Steel

Standard: CB436-2000,CB*58-83(roller standard)

Roller No.: Single Roller

Roller Diameters: 100mm~450mm

Roller Weight:9.9kg~452kg

Base Weight: 63.9kg~454.4kg

Certificate: CCS, ABS, BV, LR, NK, RINA

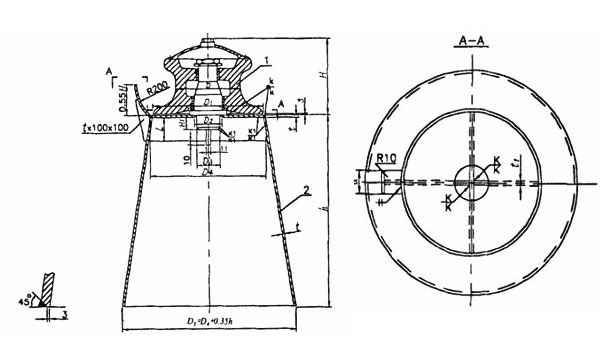

Drawing of CB436-2000 Cleat Fairlead Type A:

CB436-2000 Cleat Fairlead Type A

Unit:mm

Roller Dia.

D

Max. Dia. Of Applicable Wires(For Reference)

Dimensions(mm)

Weight

kg

Synthetic Fiber Rope

Hemp Rope

Steel Wire(GB/T 8918)

Tensile Strength 1570MPa

a

D1

D2

D3

D4

H

H1

L

S

t

t1

Fairlead Roller

Pedestal

6¡Á24

6¡Á37

100

28

40

11

11

60

160

48

40

176

128

35

60

3

8

6

9.9

63.9

150

32

45

16~18

14~16

60

240

71

60

264

211

40

75

3

12

8

33.8

129

200

40

55

22

20

60

310

95

80

338

251

50

85

3

14

10

68

178

250

45

65

24

24

80

380

107

90

408

298

60

100

4

14

10

114

207

300

50

70

30

28

80

440

127

110

474

321

60

100

4

16

14

168

265.4

350

55

75

38

34

80

500

144

125

536

346

65

100

4

18

14

248

332

400

65

85

40~42

38~40

100

560

161

140

600

371

70

120

5

20

16

355

401.3

450

80

-

44

42~44

100

620

180

155

660

394

90

120

5

20

16

452

445.4

Note: the pedestal weight means the weight when the base height is h=1000mm.
