DIN81907 Pedestal Fairlead
DIN 81907 warping roller fairlead has two types: DIN 81907 type A roller on cylindrical pedestal and type B roller on conical pedestal. Both of the warping rollers are DIN81906 type. DIN 81907 pedestal fairlead is installed on the deck of vessels which used to guide the mooring ropes. DIN81907 fairlead is produced following the German standard. The roller is flexible to guide the ropes. The surface of both the roller and pedestal is smooth without any defects. All the fairleads get the certificate of quality. If you¡¯re interested in our fairleads, please feel free to contact us.
Specification:
Model Type: DIN81907 Pedestal Fairlead
Material: Cast Iron/ Cast Steel
Roller No.: Single Roller
Standard: DIN81906-1999,DIN 81907-1997
Certificate: CCS, ABS, BV, LR, NK, RINA

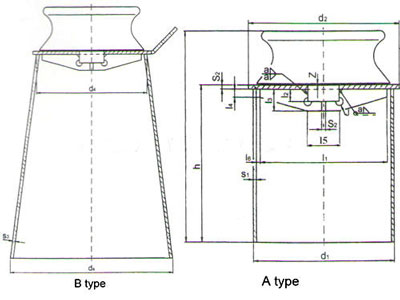

Drawing of DIN81907 Pedestal Fairlead:
Unit:mm
Type |
d1¡ÁS1 |
d2 |
b |
d4 |
1 |
219¡Á12.5 |
255 |
60 |
¡ª |
2 |
273¡Á12.5 |
310 |
60 |
¡ª |
3 |
355¡Á12.5 |
395 |
60 |
¡ª |
5 |
457¡Á12.5 |
495 |
60 |
¡ª |
8 |
559¡Á12.5 |
595 |
80 |
560 |
12 |
660¡Á14.2 |
705 |
80 |
660 |
20 |
660¡Á17.5 |
705 |
100 |
660 |
32 |
813¡Á16 |
865 |
100 |
810 |
