Deck End Roller JIS F-2020
Deck end roller is installed on the deck of mooring ships. It is stictly produced according to the Japanese standard. It is an important fairlead device for ship mooring. Deck end roller is a universal fairlead which helps to guide the ropes from any direction. Roller is polished and galvanized. Smooth surface makes the ropes get less abrasion. All our fairlead rollers get the certificate of quality. If you¡¯re interested in our fairlead roller, please feel free to contact us.
Specification:
Model Type: Deck End Roller JIS F-2020
Material: Cast Steel
Standard:JIS F-2020
Roller No.: 2/3 Rollers
Nominal Size:76mm~426mm
Certificate:CCS,ABS,BV,LR,NK,RINA

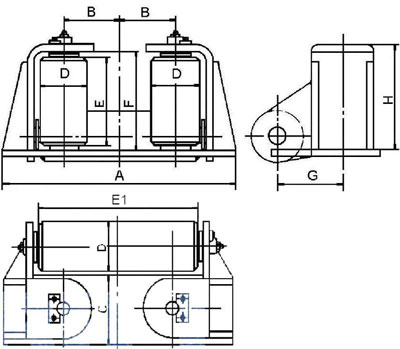

Deck End Roller JIS F-2020 Type A (3 Rollers):

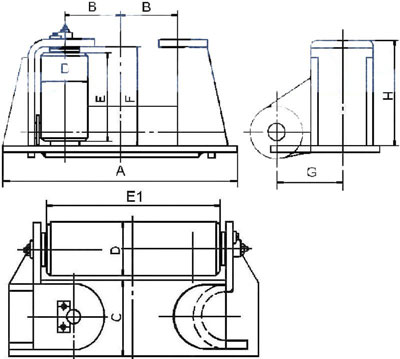

Deck End Roller JIS F-2020 Type B (2 Rollers):
Nominal Size(mm) |
Dimensions(mm) |
||||||||
A |
B |
C |
D |
E |
E1 |
F |
G |
H |
|
76 |
340 |
80 |
98 |
76 |
134 |
244 |
140 |
90 |
152 |
101 |
450 |
106 |
129 |
101 |
177 |
323 |
185 |
119 |
201 |
135 |
600 |
141 |
172 |
135 |
236 |
431 |
247 |
159 |
268 |
168 |
750 |
176 |
215 |
168 |
296 |
538 |
309 |
199 |
335 |
426 |
2260 |
370 |
491 |
426 |
596 |
1160 |
314 |
660 |
722 |
