DIN 81906 Warping Roller

DIN 81906 Warping Roller

DIN 81906-1999 warping roller is one kind of important marine deck fitting device. It is installed on the deck and guide the wire towards a certain position. DIN81906 warping roller has 8 types. Its maximum towing load is from 10KN to 320KN. DIN81906 warping roller can be used with pedestal. DIN81907 cleat single roller fairlead consists of a DIN81906 warping roller and cylindrical or conical pedestal. All our rollers and fairleads have excellent quality. If you¡¯re interested in our products, please feel free to contact us.

Specification:

Model Type: DIN81906 Warping Roller Type 1,2,3,5,8,12,20,32

Material: Cast Steel

Max. Towing Load(KN): 10,20,32,50,80,125,200,320

Weight: 12kg~625kg

Standard: DIN 81906-1999

Certificate: CCS,ABS,BV,LR,NK,RINA etc.

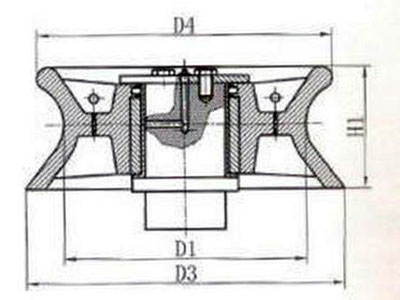

Drawing of DIN81906 Warping Roller:

DIN 81906 Warping Roller

Unit:mm

Type

Rated Towing Pull(kn)

Breaking Strain of Rope(kn)

Weight(kg)

D1

D3

D4

H1

1

10

90

14

160

210

195

80

2

20

150

20

200

265

245

102

3

30

220

33

250

330

300

126

5

50

350

72

320

420

390

160

8

80

500

140

400

530

490

208

12

120

800

240

450

610

560

256

20

200

1150

320

500

640

620

278

32

320

1750

580

560

780

740

348
