Vertical Sheave
[Search Related Products]

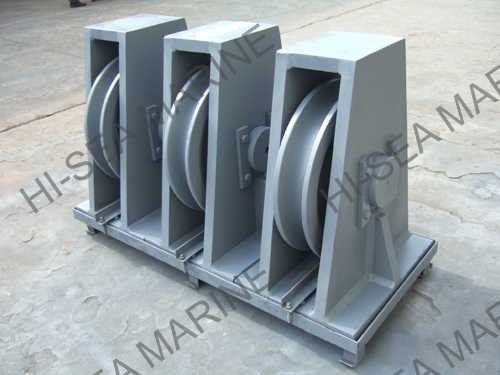

Features of Vertical Sheave
1. Applicable max wire diameters 20mm~76mm
2. Material: Cast Iron/Steel
3. Good wear and corrosion resistance
4. Self-lubrication
5. Vibration-absorption
6. Breaking strength of wire with 90 degree warp on sheave
7. Bolt or welded base
8. Paint according to customer¡¯s specification
9. Produce according to customers¡¯ special design
Optional load monitoring system

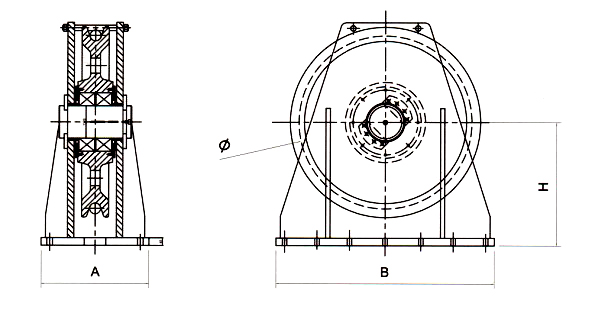

Drawing of Vertical Sheave:
MAX WIRE DIA (mm) |
A (mm) |
B (mm) |
H (mm) |
§¶ (mm) |
20 |
280 |
390 |
220 |
340 |
25 |
330 |
480 |
265 |
425 |
32 |
406 |
590 |
340 |
520 |
38 |
362 |
690 |
380 |
600 |
44 |
560 |
815 |
450 |
710 |
52 |
610 |
1010 |
570 |
880 |
60 |
760 |
1100 |
600 |
930 |
68 |
920 |
1150 |
650 |
956 |
76 |
1350 |
1250 |
720 |
1120 |
