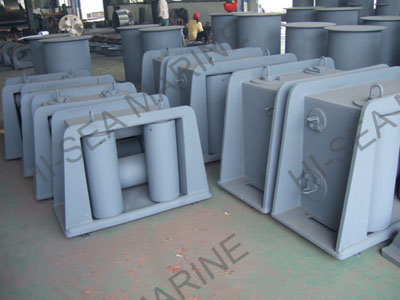

Jis F2026 Fairlead with Horizontal Roller
[Search Related Products]
Features of JIS F2026 Fairlead with Horizontal Roller
1. Strictly produced according to standard JIS F2026-80;
2. Nominal diameter 140mm to 315mm;
3. Four horizontal rollers;
4. Cast steel/iron;
5. Polished and galvanized surface;
6. Excellent wear and corrosion resistance;
7. Provide CCS, ABS,BV etc. certificate;
8. Produce fairlead according to customer¡¯s drawing

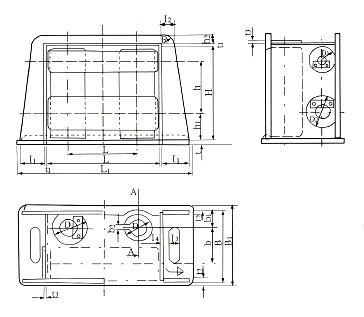

Drawing of JIS F 20260-1980 Fairlead
unit: mm
Nominal Dia | Frame | ||||||||||||||||
B | B1 | b | b1 | b2 | D | D1 | D2 | H | h | h1 | h2 | L | L1 | l | l1 | l2 | |
140 | 310 | 355 | 150 | 69 | 20 | 90 | 140 | 12 | 480 | 275 | 130 | 40 | 515 | 805 | 335 | 120 | 60 |
160 | 360 | 405 | 175 | 82 | 22 | 110 | 160 | 140 | 515 | 290 | 145 | 45 | 570 | 890 | 365 | 135 | 65 |
180 | 410 | 455 | 200 | 95 | 24 | 135 | 180 | 150 | 560 | 315 | 155 | 50 | 620 | 960 | 390 | 145 | 70 |
200 | 460 | 505 | 225 | 108 | 26 | 160 | 200 | 160 | 590 | 330 | 170 | 60 | 675 | 1049 | 420 | 160 | 80 |
250 | 565 | 610 | 280 | 133 | 30 | 200 | 250 | 200 | 715 | 415 | 195 | 75 | 825 | 1303 | 520 | 210 | 105 |
315 | 715 | 715 | 330 | 159 | 34 | 240 | 300 | 240 | 870 | 520 | 220 | 90 | 980 | 1562 | 620 | 260 | 130 |
Nominal Dia. |
Frame |
Applicable wire rope dia |
Opening dia (long¡Áwide) |
Weight(kg) |
SWL |
||||||
l3 |
l4 |
R |
t |
t1 |
t2 |
t3 |
|
|
|
||
140 |
50 |
20 |
40 |
12 |
10 |
16 |
6 |
18 |
148¡Á195 |
214 |
15T |
160 |
50 |
20 |
45 |
14 |
10 |
18 |
8 |
22.4 |
150¡Á200 |
307 |
20T |
180 |
50 |
20 |
60 |
16 |
10 |
20 |
10 |
25 |
150¡Á199 |
410 |
26T |
200 |
50 |
20 |
60 |
18 |
12 |
22 |
10 |
28 |
152¡Á204 |
568 |
34T |
250 |
60 |
25 |
75 |
20 |
14 |
26 |
12 |
35.5 |
199¡Á253 |
1000 |
46T |
315 |
60 |
25 |
90 |
22 |
16 |
30 |
14 |
42.5 |
253¡Á302 |
1620 |
60T |
