Warping Roller(Korean Type)

[Search Related Products]

Warping Roller(Korean Type)

Features of Warping Roller (Korean Type)

1. Korean type warping fairlead roller;

2. Used for bollard cable leading of ships;

3. High breaking strength load;

4. Cast iron/ cast steel roller;

5. Combination type: double/three or more warping roller with plate;

6. Compact design, precision machined,smooth surface;

7. High abrasion resistance;

8. Grey,black,red colors for customerˇŻs choice;

9. Certificate: CCS,ABS, BV etc.;

10. Provide customized fairlead rollers according to customerˇŻs drawings

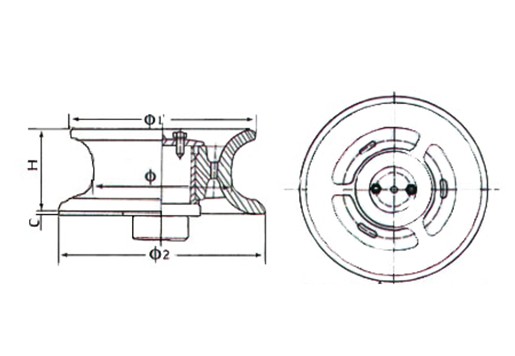

Drawing of Warping Roller



Nominal Dla(mm) ¦µ(mm) ¦µ1(mm) ¦µ2(mm) H(mm) C(mm)
150 150 216 240 137 5
200 200 280 310 157 5
250 250 350 380 177 6
300 300 400 440 197 7
350 350 460 500 217 7
400 400 520 560 237 7
450 450 590 630 257 7
500 500 660 700 277 7
