Fairlead Roller Type A

[Search Related Products]

Fairlead Roller Type A

Fairlead Roller Type A

Fairlead roller is applicable to ship mooring, helping change the direction of mooring ropes. Marine rollers can work separately or together. According to different marine ship producing standard, fairlead roller has different types: GB/T10105-88 marine roller, CB*58-83 fairlead roller,JIS F2014-1987 fairlead roller and DIN81906-1999 roller etc. Different types have different function and specification. We can provide the standard marine rollers and the customized one for your special requirements. If you¡¯re interested in our fairlead roller, please feel free to contact us.

Specification:

Model Type: Fairlead Roller Type A

Material: Cast Steel/Iron

Nominal Diameter:150mm~500mm

Certificate: CCS,ABS,BV,LR,NK.RINA

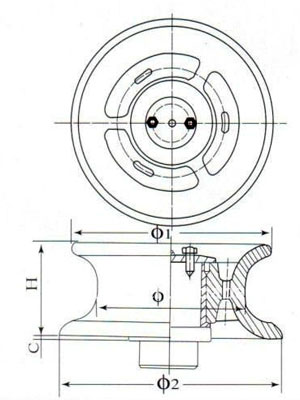

Drawing of Fairlead Roller Type A:

Fairlead Roller Type A

Unit:mm

Nominal Size

¦µ

¦µ1

¦µ2

H

c

150

150

216

240

137

5

200

200

280

310

157

5

250

250

350

380

177

6

300

300

400

440

197

7

350

350

460

500

217

7

400

400

520

560

237

7

450

450

590

630

257

7

500

500

660

700

277

7
