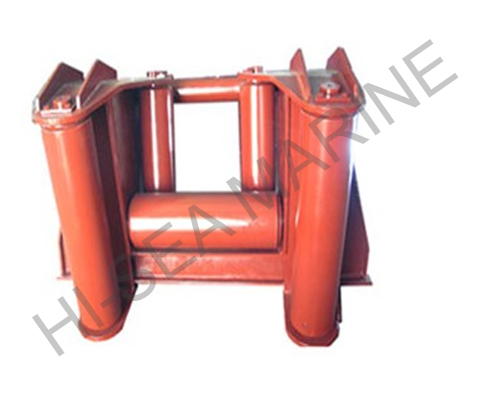

6 Rollers Fairlead
[Search Related Products]
Features of 6 Rollers Fairlead
1. Fairlead with 6 horizontal rollers;
2. Cast steel;
3. Epoxy zinc-rich paint;
4. Durable long life;
5. Universal roller fairlead that can guide mooring ropes from any direction;
6. Polished and galvanized to have high corrosion-resistance;
7. Get certificate of CCS, ABS etc.
8. Produce customized fairlead according to customer¡¯s requirement;

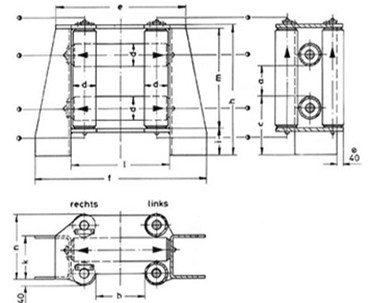

Drawing of 6 Rollers Fairlead
unit: mm
Type | Rated Towing Pull (KN) | Rope ¦µ | Breaking Strength of Wire (KN) | Wire Size | a | b | c | d | e | f | h | i | k | l | m | n | Weight (kg) | |
BW 8F- | 20 | -12 | 150 | 12 | 180 | 100 | 208 | 80 | 710 | 914 | 465 | 80 | 130 | 620 | 356 | 255 | 100 | 150 |
BW 10F- | 30 | -16 | 220 | 16 | 230 | 130 | 258 | 100 | 878 | 1132 | 575 | 100 | 170 | 778 | 446 | 315 | 170 | 210 |
BW 12F- | 50 | -20 | 350 | 20 | 250 | 130 | 308 | 120 | 998 | 1272 | 655 | 120 | 210 | 878 | 506 | 375 | 390 | 460 |
BW 14F- | 80 | -24 | 500 | 24 | 280 | 160 | 328 | 140 | 1136 | 1420 | 730 | 120 | 248 | 996 | 576 | 432 | 665 | 800 |
BW 18F- | 120 | -32 | 800 | 32 | 300 | 160 | 398 | 180 | 1314 | 1678 | 855 | 140 | 326 | 1154 | 676 | 549 | 700 | 920 |
BW24.5F- | 200 | -40 | 1150 | 40 | 320 | 180 | 505 | 245 | 1596 | 1916 | 1045 | 180 | 460 | 1396 | 830 | 750 | 1300 | 1550 |
BW 30F- | 320 | -48 | 1750 | 48 | 400 | 250 | 583 | 300 | 1936 | 1936 | 1260 | 200 | 568 | 1716 | 1016 | 912 | 2550 | 3100 |
