Swivel Achor Fairlead

[Search Related Products]

Swivel Achor Fairlead

Features of Swivel Anchor Fairlead

1. Used to guide ropes of various vessels;

2. Multiple sheaves (depends on customers¡¯ need)

3. Having a breaking strength of wire with 90¡ãwarp

on the sheave and ¡À90¡ãrotation of swivel head

4. Long using life for the sealed grease lubricated tapered roller bearings

5. Removable guide roller

6. Fairlead with a welded base

7. Made of Cast steel

8. Get approvals of CCS,ABS, BV etc.

9. Can produce according to customers¡¯ drawings

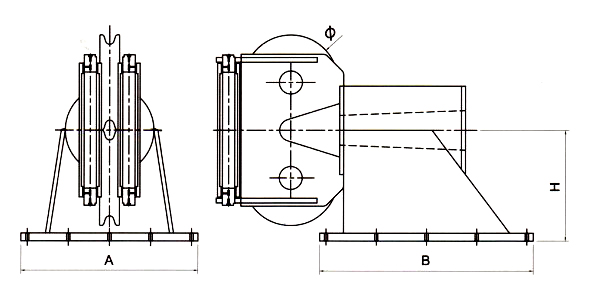

Drawing of Swivel Anchor Fairlead:

Swivel Achor Fairlead

MAX WIRE DIA (mm)

A (mm)

B (mm)

H (mm)

§¶ (mm)

20

400

425

350

250

25

400

425

360

250

32

600

600

376

320

38

760

760

489

400

44

880

880

580

500

52

1120

1250

700

600

60

1120

1350

720

620

68

1210

1450

780

680

76

1250

1500

870

780
