Closed Type Roller Fairlead

Close Type Roller Fairlead

Roller fairlead is usually located in the sides of a ship which consists of a number of rollers.It is used to guide ropes of marine ships. Roller fairlead can be divided into open type and closed type roller fairlead. JIS F 2014-1987 roller fairlead has the following types:open type fairleads with two rollers or three rollers; closed type fairleads with two rollers or three rollers. Each type is composed of rollers and a stand. If you’re interested in our guide rollers, please feel free to contact us.

Specification:

Model Type: Closed Type Roller Fairlead

Material: Cast Steel/ Cast Iron

Standard: CB*58-83, JIS F 2014-1987

Roller No.: 2/3 Rollers

Nominal Diameters:150mm~450mm

Certificate: CCS,ABS,BV,LR,NK,RINA

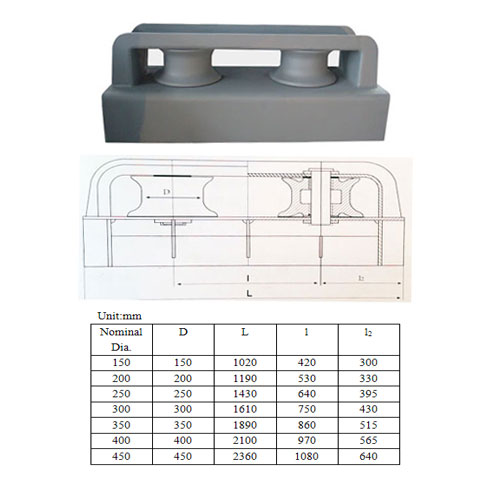

JIS F 2014-1987 Two Roller Fairlead (Closed Type):

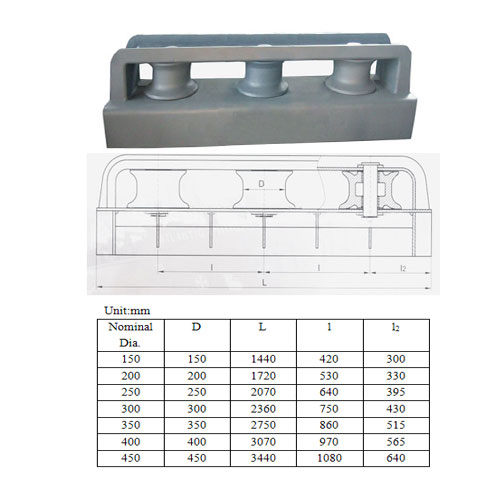

JIS F 2014-1987 Three Roller Fairlead (Closed Type):
