9 Rollers Fairlead

Features of 9 Rollers Fairlead

1. Universal Fairlead with 9 horizontal rollers;

2. Used to guide mooring ropes from different directions;

3. Cast steel material;

4. Nominal pulling load 20KN to 320KN;

5. Excellent wear and corrosion resistance;

6. Durable and long lifetime;

7. Pass quality test of quality inspection center;

8. Produce customized fairlead;

9 Rollers Fairlead

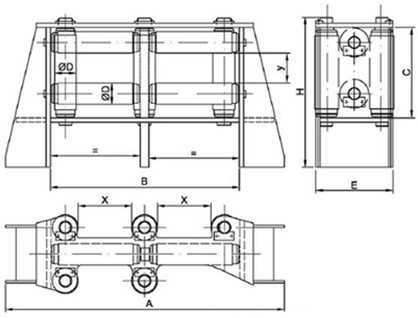

Drawing of 9 Rollers Fairlead



unit: mm

Type Nominal Pull(KN) Wire Φ Rope Φ A B D E H L X×Y
FA-9-12 20 12 22 914 626 364 82.5 260 490 180×100
FA-9-16 30 16 28 1130 786 454 101.6 330 610 230×120
FA-9-20 50 20 36 1270 900 524 127 410 715 250×140
FA-9-24 80 24 48 1420 1000 580 139.7 460 800 280×150
FA-9-32 120 32 60 1680 1150 680 177.8 570 915 300×160
FA-9-36 160 36 72 1820 1250 732 194 630 1005 320×170
FA-9-40 200 40 78 1940 1440 856 244.5 780 1145 340×180
FA-9-48 320 48 96 2400 1720 1026 299 960 1355 400×250
