Engineering Vessel Roller Fairlead CB3015
[Search Related Products]

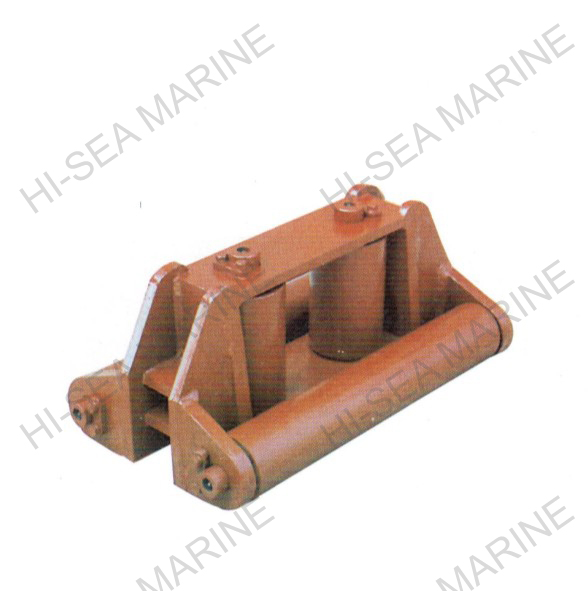

Features of CB3015-83 Engineering Vessel Fairlead
1. Widely applicable to dredgers, crane ships, piling boats and other engineering vessels;
2. Roller diameters vary from 100mm to 300mm;
3. Body, vertical and horizontal rollers casted steel;
4. Clean and smooth surface without any defects;
5. Flexible to swivel;
6. Painted asphalt and lubricating oil;
7. Third party quality certification;
8. Produce according to customers¡¯ special requirements

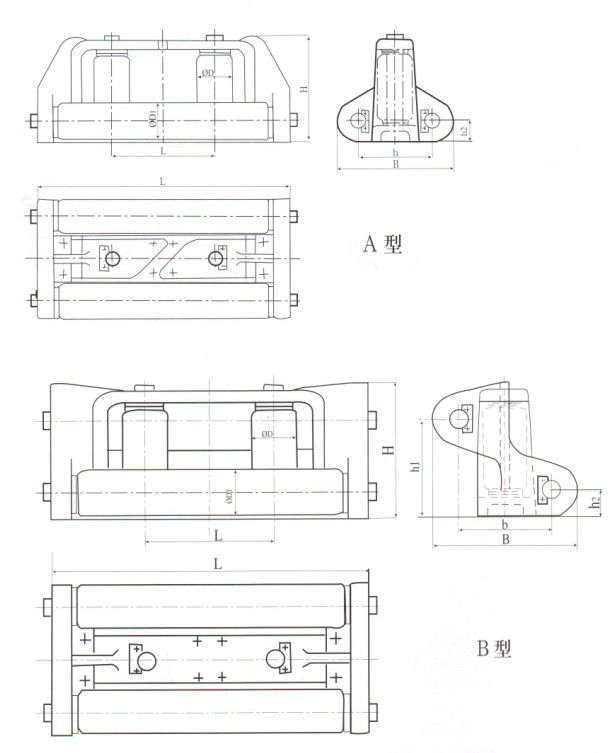

Drawing of CB3015-83 Engineering Vessel Fairlead
unit: mm
D |
D1 |
§¶ |
L |
B |
H |
b |
h1 |
h2 |
l |
d |
|
A type |
B type |
||||||||||
100 |
85 |
19.5 |
540 |
340 |
240 |
240 |
250 |
220 |
50 |
200 |
22 |
150 |
120 |
26 |
760 |
460 |
340 |
340 |
340 |
320 |
65 |
290 |
26 |
200 |
150 |
37.5 |
980 |
580 |
430 |
440 |
430 |
410 |
80 |
380 |
32 |
250 |
200 |
48.5 |
1220 |
740 |
520 |
550 |
540 |
500 |
110 |
480 |
39 |
300 |
250 |
56 |
1460 |
900 |
620 |
675 |
650 |
590 |
135 |
580 |
39 |
