CB 3062-2011 Four Roller Fairlead Type B

Fairlead with Horizontal Rollers

Fairlead with horizontal rollers, consisting of vertical and horizontal rollers, can guide mooring ropes from any direction. Horizontal roller fairlead, also called universal roller fairlead, is usually located in the deck end. Horizontal roller fairlead can greatly reduce the abrasion of mooring ropes for the rollers fixed around the fairlead.

CB/T 3062-2011 Horizontal Roller Fairlead

CB/T3062-2011 fairlead with horizontal rollers has 3 types: CB/T3062-2011 type A,B, C. The total number of rollers ranges from 3 to 5. Horizontal roller fairlead is strictly produced according to the standard CB/T3062-2011. The surface of the rollers do not have any defects which affect its performance and intensity such as cracks, blisters. All the fairleads get the certificate of quality. If you¡¯re interested in our fairleads, please feel free to contact us.

Specification of CB*3062-2011 Fairlead Type B :

Model Type: CB*3062-2011 Four Roller Fairlead Type B

Material: Cast Steel

Standard: CB*3062-2011

Roller No.: 4 Rollers

Steel Cable Diameters: 14mm~44mm

Nylon Rope Diameters: 36mm~100mm

Weight: 112kg~2411kg

Certificate: CCS, ABS, BV, LR, NK, RINA

Drawing of CB 3062-2011 Four Roller Fairlead Type B:

CB 3062-2011 Four Roller Fairlead Type B

Unit:mm

Nominal Diameter

Steel Wire Diameter

Nylon Rope Diameter

SWL

KN

B

B1

B2

D

H

H1

L

L1

L2

L3

t

Weight

kg

100

14

36

54

238

194

108

102

508

330

644

416

300

544

10

112

120

16

40

70

280

232

128

121

552

360

728

456

320

608

12

169

140

18

45

89

304

250

138

140

606

405

776

480

330

646

14

227

150

20

70

110

346

288

158

152

670

435

880

540

370

730

16

328

160

22

80

133

370

308

168

168

710

470

940

580

400

780

18

388

180

26

85

186

417

345

190

194

770

380

1030

620

420

850

20

620

200

28

95

216

459

385

210

219

820

410

1136

686

460

936

22

789

230

32

100

282

521

445

240

245

910

450

1256

746

490

1026

25

1067

260

36

100

357

590

500

270

273

1000

500

1430

850

560

1170

28

1585

320

44

100

533

714

620

330

325

1130

570

1690

990

640

1370

30

2441

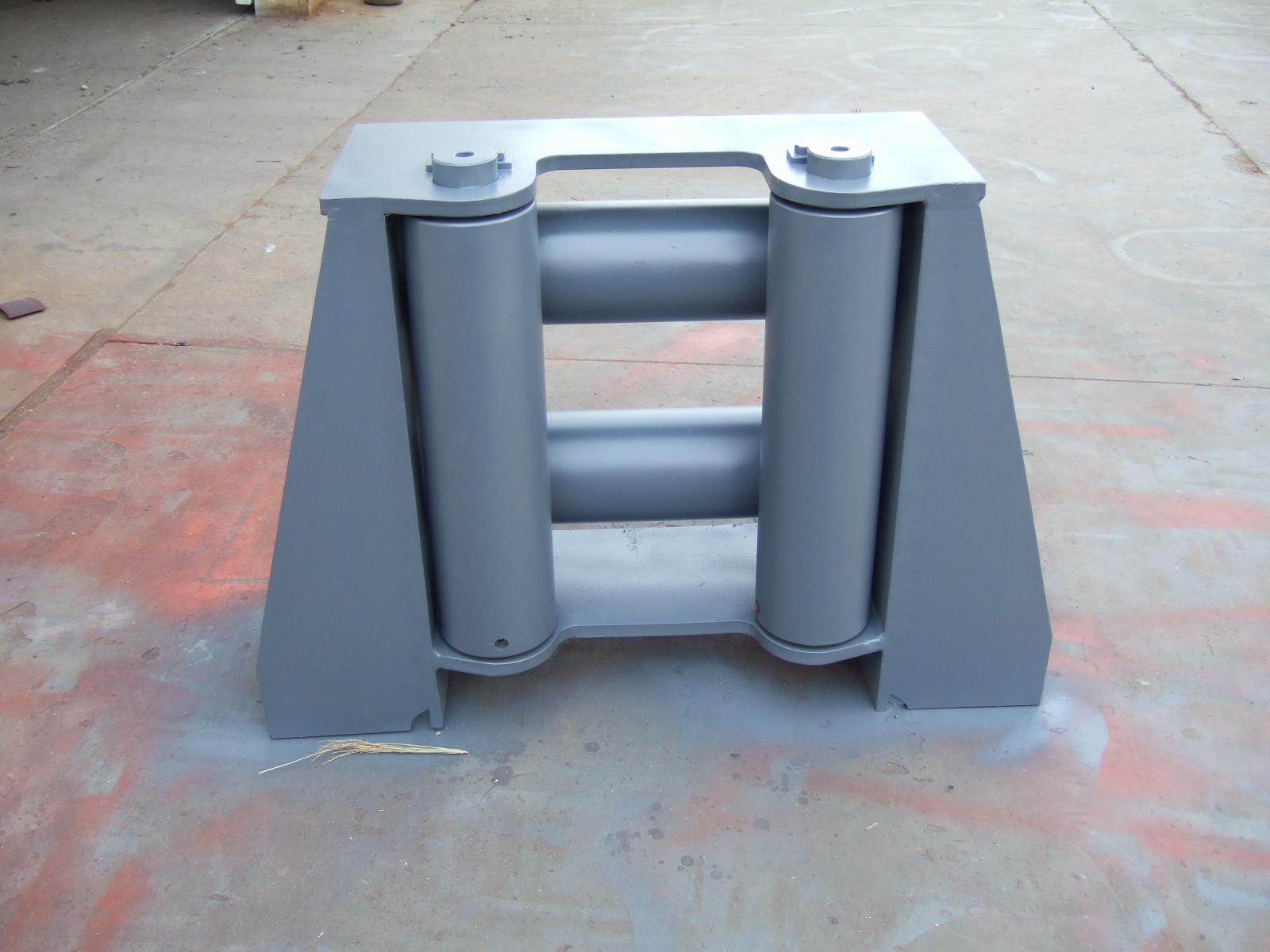

CB 3062-2011 Four Roller Fairlead Type B

CB/T 3062-2011 Type B Fairlead with Four Horizontal Rollers
