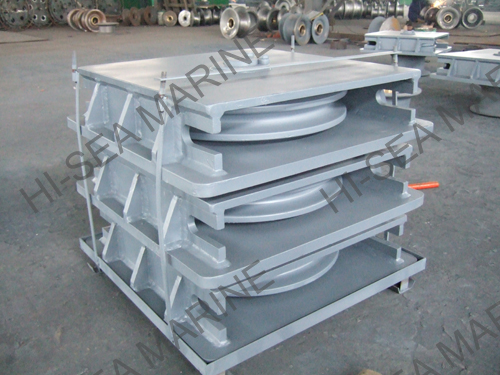

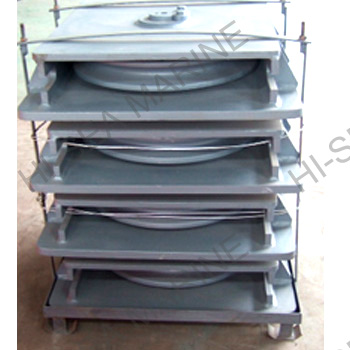

Horizontal Lead Sheave
[Search Related Products]
Features of Horizontal Lead Sheave
1. Mounted on deck to guide ropes;
2. Single or double horizontal lead sheave;
3. High breaking strength load of wire;
4. Warp angle 90-180 degree;
5. Smooth surface with no burs or sharp edges;
6. Painting colors depend on customer¡¯s need;
7. Certificate: CCS,ABS, BV,LR etc.
8. Produced according to customer¡¯s drawing

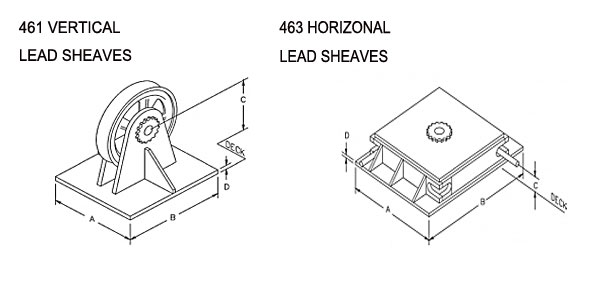

Drawing of 461&463 Vertical and Horizontal Lead Sheaves
Figure No. |
Lead Sheave Stock No. |
Sheave Diamerter (in.) |
Stanard Each (ibs) |
Weight Each (ibs) |
Dimensions(in.) |
|||
A |
B |
C |
D |
|||||
461-18 |
239753 |
18 |
7/8 |
500 |
12.00 |
20.00 |
11.00 |
1.50 |
461-24 |
131574 |
24 |
1-1/4 |
500 |
15.00 |
26.00 |
14.00 |
1.50 |
461-26 |
238120 |
26 |
1-1/2 |
660 |
16.00 |
28.00 |
15.00 |
1.50 |
461-36 |
148389 |
36 |
1-5/8 |
850 |
20.00 |
36.00 |
19.50 |
2.00 |
461-40 |
136285 |
40 |
2 |
2006 |
23.00 |
42.00 |
22.50 |
2.00 |
461-42 |
130753 |
42 |
2-1/2 |
4000 |
28.00 |
52.00 |
25.50 |
2.50 |
463-26 |
4440359 |
26 |
1 |
988 |
33.00 |
33.00 |
3.75 |
1.50 |
463-30 |
1404377 |
30 |
1-1/4 |
1225 |
37.00 |
37.00 |
3.50 |
1.50 |
463-36 |
146522 |
36 |
1-1/2 |
1900 |
43.00 |
43.00 |
3.50 |
1.50 |
463-42 |
1406525 |
42 |
1-3/4 |
2975 |
50.00 |
50.00 |
4.38 |
2.00 |
463-48 |
131583 |
48 |
2 |
3600 |
55.00 |
55.00 |
4.63 |
2.00 |
463-60 |
123164 |
60 |
2-1/2 |
6400 |
68.00 |
68.00 |
5.75 |
2.00 |
