Marine Cast Iron Straight Hose Valve JIS F7333 5K/10K
[Search Related Products]
Marine Cast Iron Straight Hose Valve JIS F7333A 5K/10K :
1.Design standard:JISF7400.
2.End standard:JISB2220.
3.End type:Flange.
4.PN:5k/10k.
5.DN:50mm-65mm.
6.Main material:
-
Body/Bonnet:FC20;
-
Seat:BC6/SS410;
-
Stem:BRASS/SS410;
-
Disc:BC6/SS410.
7.Applicatin: Water piping.
8.Function:Such valves are used for fire control.
9.Specification of Marine Cast Iron Straight Hose Valve JIS F7333A 5K/10K :
| Size | L1 | L2 | Flange diam. (D) | Pitch (C) | Hole (nxd) | t | H1 | Weight |
| (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kgs) |
| 5K50 | 105 | 110 | 130 | 105 | 4x¦µ15 | 16 | 270 | 14.7 |
| 10K50 | 110 | 115 | 155 | 120 | 4x¦µ19 | 20 | 285 | 18.9 |
| 10K65 | 135 | 140 | 175 | 140 | 4-x¦µ19 | 22 | 310 | 28.2 |

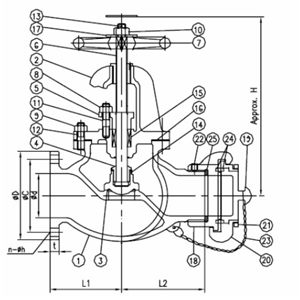

10.Srawing of Marine Cast Iron Straight Hose Valve JIS F7333A 5K/10K :
11.Certificate available:
