Wafer Type Butterfly Valve DIN 3202 PN10

Wafer Type Butterfly Valve DIN 3202 PN10

1. Brief Introduction:

We can supply standard DIN marine valve in a wide variety of size. Since 1996, we started to export DIN marine valve.

As a reliable DIN marine valve supplier, we control the quality from the raw material, the casting to the final test to ensure that our products have reliable quality with competitive price. CCS, BV, ABS, DNV, NK, LR, RINA Certificate can be supplied.

2. Standard:

Design Standard: DIN 3202

Manufactured in accordance to DIN 3202

3. Material:

Valve Body: Ductile Iron/Cast Steel

Valve Seat: Rubber

Valve Disc: Stainless Steel/Bronze

Valve Stem: Stainless Steel

4. Pressure:

Body Pressure: 2.06 MPA

Seat Pressure: 1.47 MPA

5. Data for Wafer Type Butterfly Valve DIN 3202 PN10:

Nominal Diameter (mm) D D1 L N Weight (KG)
50 94 125 43 4x15 7.8
65 117 145 46 4x15
11
80 127 160 46 4x21
15
100 152 180 52 8x19
18
125 183 210 56 8x21
24
150 213 240 56 8x21
35

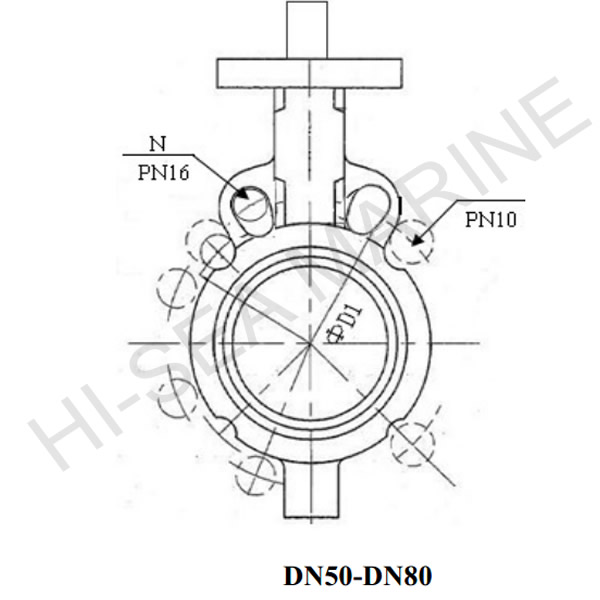

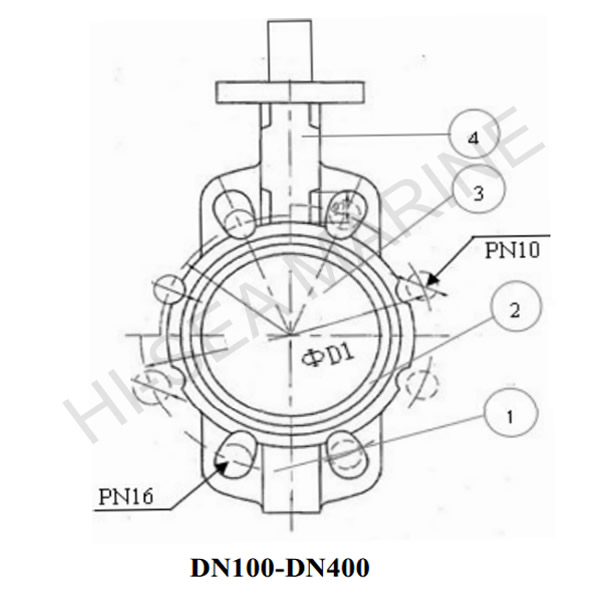

6. Wafer Type Butterfly Valve DIN 3202 PN10 Drawing:

Wafer Type Butterfly Valve DIN 3202 PN10

Wafer Type Butterfly Valve DIN 3202 PN10

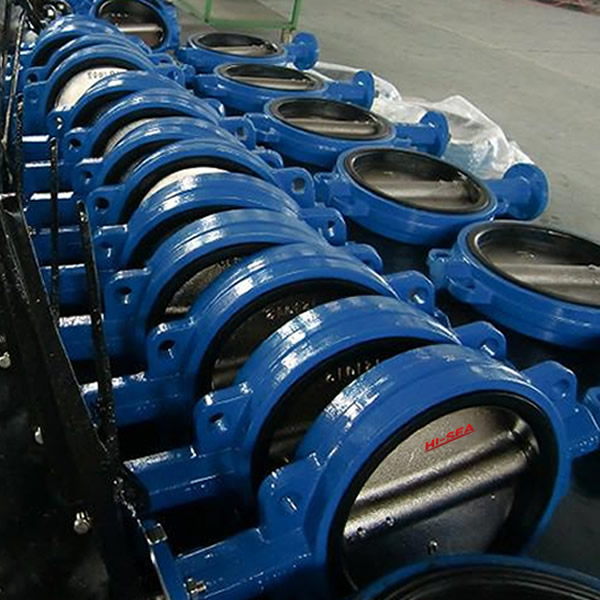

7. Wafer Type Butterfly Valve DIN 3202 PN10 in Factory:

Wafer Type Butterfly Valve DIN 3202 PN10
