Marine Wafer Type Butterfly Valve DIN 3202 PN16

Marine Wafer Type Butterfly Valve DIN 3202 PN16

1. Material:

Body: Ductile Iron or Cast Steel (FCD/SC49)

Seat: Rubber (NBR)

Disc: Stainless Steel or Bronze (SUS304/ BC6)

Stem: Stainless Steel (SUS403)

2. Pressure:

Pressure(Body): 3.24 Mpa

Pressure (Seat): 2.38 Mpa

3. Operate:

Handle or Worm

4. Data for Marine Wafer Type Butterfly Valve DIN 3202 PN16

Manufactured in accordance to DIN 3202

Nominal Diameter (mm)

D

D1

L

N

Weight (KG)

50

94

125

43

4x21

7.8

65

117

145

46

4x21

11

80

127

160

46

8x21

15

100

152

180

52

8x21

18

125

183

210

56

8x25

24

150

213

240

56

8x25

35

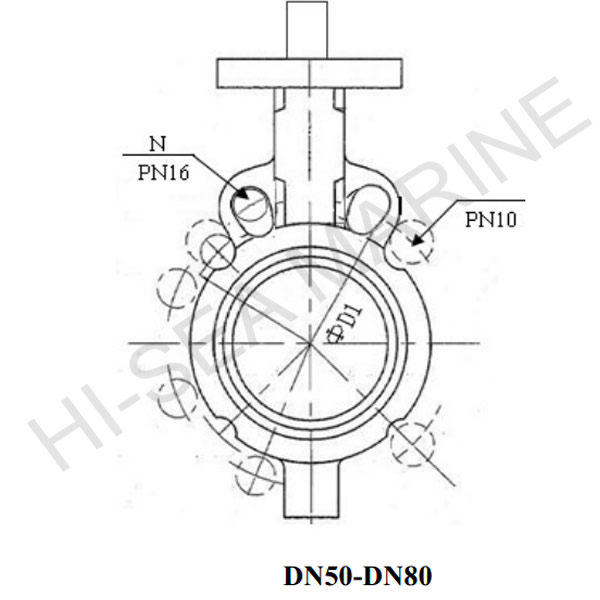

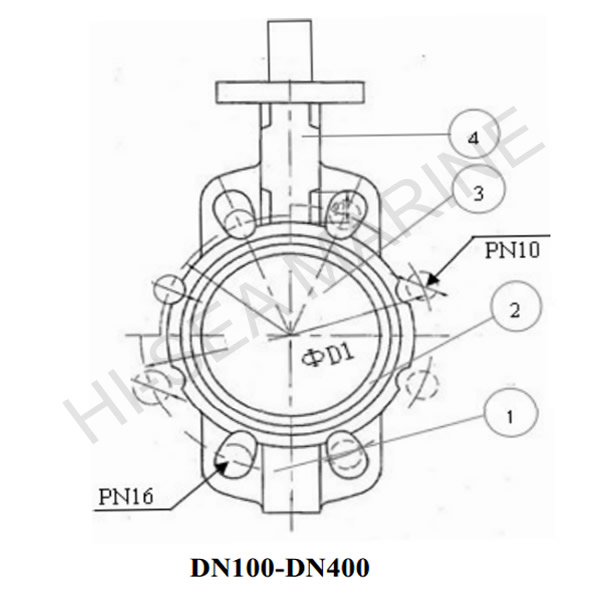

5. Marine Wafer Type Butterfly Valve DIN 3202 PN16 Drawing:

Marine Wafer Type Butterfly Valve DIN 3202 PN16

Marine Wafer Type Butterfly Valve DIN 3202 PN16

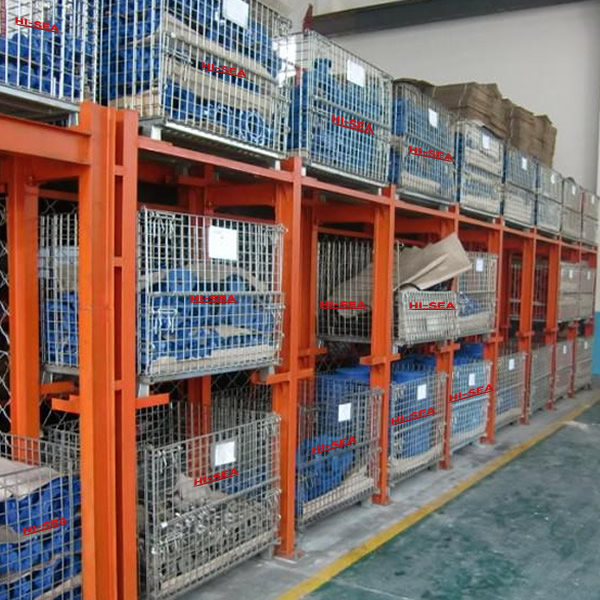

6. Marine Wafer Type Butterfly Valve DIN 3202 PN16 in Warehouse:

Marine Wafer Type Butterfly Valve DIN 3202 PN16
